Brand New Excavator Flail Mower Q355B/Q690D ISO9001 Certified

1 set
MOQ
$1200-4000
Cena £
Brand New Excavator Flail Mower Q355B/Q690D ISO9001 Certified
cechy Galeria opis produktu Poprosić o wycenę
cechy
specyfikacje
Certyfikat: ISO9001
Gwarancja: 1 rok
Warunki: 100% zupełnie nowy.
Źródło energii: Mechaniczny
Jakość: Wysokiej jakości
Kolor: Pomarańczowy/Czarny/inne
Waga: 250-14500 kg
Materiał: Q355B, Q690D
Podstawowe informacje
Miejsce pochodzenia: Guangzhou,China
Nazwa handlowa: Mechanical Grapple
Orzecznictwo: ISO9001
Numer modelu: HT123
Zapłata
Szczegóły pakowania: standard package
Czas dostawy: 7-20days
opis produktu

Brand New Excavator Flail Mower Q355B/Q690D ISO9001 Certified 0

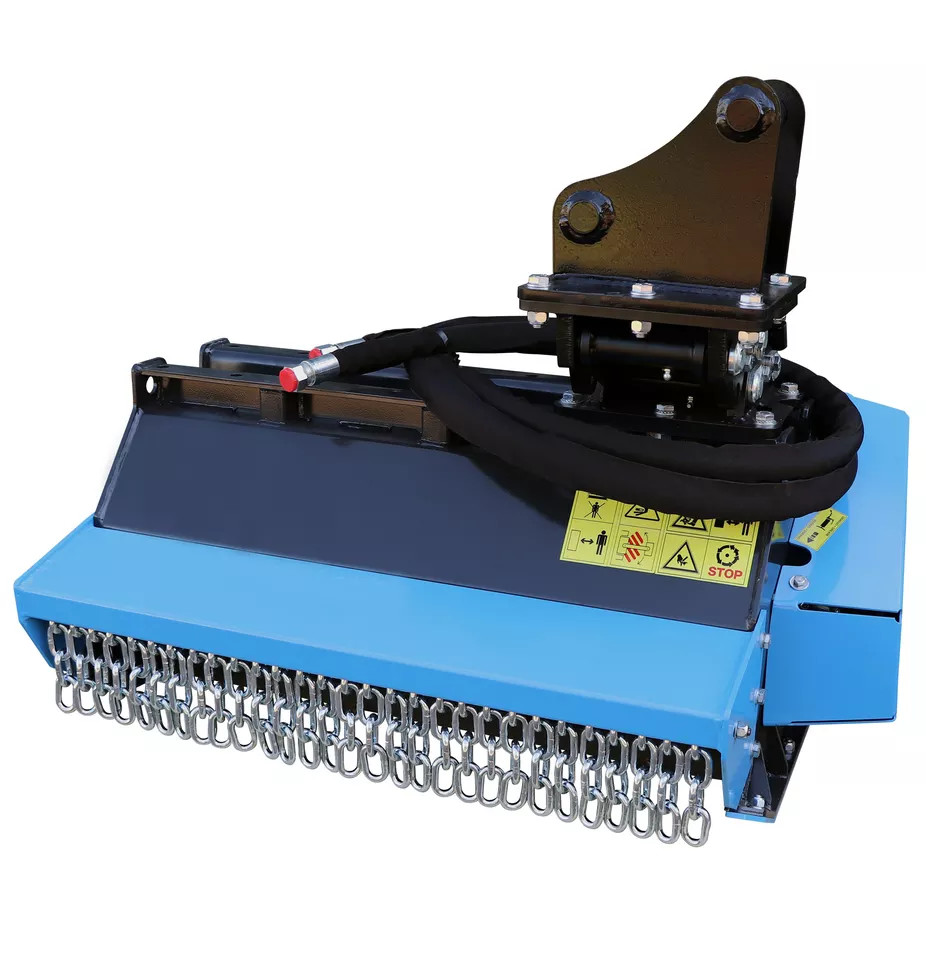

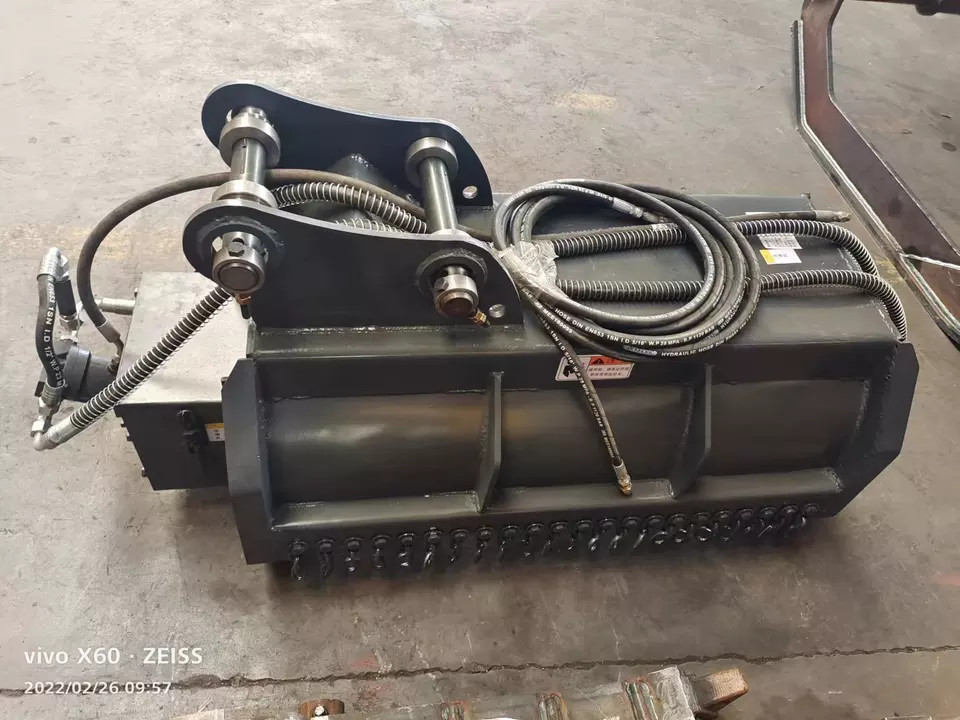

Excavator Flail Mower

The flail mowers are primarily used for grass mowing in verges, ditches, dikes and slopes. Hedge trimming of smaller branches is also no challenge for these versatile machines. The Integrated Airflow system is one of the main features of the FR series. The space between the rotor and the shield is purposely designed to increase the air velocity so the cut-off material exits the mower as quickly as possible. It creates a natural vacuum that sucks the grass into the mower. This increases the capacity of the flail head and reduces the power requirement.



Brand New Excavator Flail Mower Q355B/Q690D ISO9001 Certified 1

Brand New Excavator Flail Mower Q355B/Q690D ISO9001 Certified 2

Brand New Excavator Flail Mower Q355B/Q690D ISO9001 Certified 3


Brand New Excavator Flail Mower Q355B/Q690D ISO9001 Certified 4

Brand New Excavator Flail Mower Q355B/Q690D ISO9001 Certified 5



Brand New Excavator Flail Mower Q355B/Q690D ISO9001 Certified 6

Brand New Excavator Flail Mower Q355B/Q690D ISO9001 Certified 7


Brand New Excavator Flail Mower Q355B/Q690D ISO9001 Certified 8

The machines are manufactured in Strenx 700 high strength steel which is one of the most durable steel types in the world. It is the same material that is used for chassis in the automotive industry. The flails are adapted to the rotor to stop breakage and damage from happening. These measures keep the maintenance costs at a low level.


TECHNICAL DATA

HTFM 122

HTFM 162

Working width

1.2 m (3'11")

1.6 m (5'3")

Branch thickness

4 cm (1.57")

4 cm (1.57")

Driving speed up to

5 - 7 km/h
(3.11 - 4.35 mph)

5 - 7 km/h
(3.11 - 4.35 mph)

Required hydraulic connections

1 x double acting + 1 x drain

1 x double acting + 1 x drain

Required oil flow

85 l/min @ 230 bar
(22.5 gpm @ 3336 psi)

85 l/min @ 230 bar
(22.5 gpm @ 3336 psi)

Required oil flow

85 l/min @ 315 bar
(22.5 gpm @ 4569 psi)

85 l/min @ 315 bar
(22.5 gpm @ 4569 psi)

Weight

320 kg
(705 lb)

360 kg
(794 lb)



Brand New Excavator Flail Mower Q355B/Q690D ISO9001 Certified 9


Brand New Excavator Flail Mower Q355B/Q690D ISO9001 Certified 10


Brand New Excavator Flail Mower Q355B/Q690D ISO9001 Certified 11


Brand New Excavator Flail Mower Q355B/Q690D ISO9001 Certified 12





Brand New Excavator Flail Mower Q355B/Q690D ISO9001 Certified 13

Brand New Excavator Flail Mower Q355B/Q690D ISO9001 Certified 0

Excavator Flail Mower

The flail mowers are primarily used for grass mowing in verges, ditches, dikes and slopes. Hedge trimming of smaller branches is also no challenge for these versatile machines. The Integrated Airflow system is one of the main features of the FR series. The space between the rotor and the shield is purposely designed to increase the air velocity so the cut-off material exits the mower as quickly as possible. It creates a natural vacuum that sucks the grass into the mower. This increases the capacity of the flail head and reduces the power requirement.



Brand New Excavator Flail Mower Q355B/Q690D ISO9001 Certified 1

Brand New Excavator Flail Mower Q355B/Q690D ISO9001 Certified 2

Brand New Excavator Flail Mower Q355B/Q690D ISO9001 Certified 3


Brand New Excavator Flail Mower Q355B/Q690D ISO9001 Certified 4

Brand New Excavator Flail Mower Q355B/Q690D ISO9001 Certified 5



Brand New Excavator Flail Mower Q355B/Q690D ISO9001 Certified 6

Brand New Excavator Flail Mower Q355B/Q690D ISO9001 Certified 7


Brand New Excavator Flail Mower Q355B/Q690D ISO9001 Certified 8

The machines are manufactured in Strenx 700 high strength steel which is one of the most durable steel types in the world. It is the same material that is used for chassis in the automotive industry. The flails are adapted to the rotor to stop breakage and damage from happening. These measures keep the maintenance costs at a low level.


TECHNICAL DATA

HTFM 122

HTFM 162

Working width

1.2 m (3'11")

1.6 m (5'3")

Branch thickness

4 cm (1.57")

4 cm (1.57")

Driving speed up to

5 - 7 km/h
(3.11 - 4.35 mph)

5 - 7 km/h
(3.11 - 4.35 mph)

Required hydraulic connections

1 x double acting + 1 x drain

1 x double acting + 1 x drain

Required oil flow

85 l/min @ 230 bar
(22.5 gpm @ 3336 psi)

85 l/min @ 230 bar
(22.5 gpm @ 3336 psi)

Required oil flow

85 l/min @ 315 bar
(22.5 gpm @ 4569 psi)

85 l/min @ 315 bar
(22.5 gpm @ 4569 psi)

Weight

320 kg
(705 lb)

360 kg
(794 lb)



Brand New Excavator Flail Mower Q355B/Q690D ISO9001 Certified 9


Brand New Excavator Flail Mower Q355B/Q690D ISO9001 Certified 10


Brand New Excavator Flail Mower Q355B/Q690D ISO9001 Certified 11


Brand New Excavator Flail Mower Q355B/Q690D ISO9001 Certified 12





Brand New Excavator Flail Mower Q355B/Q690D ISO9001 Certified 13
